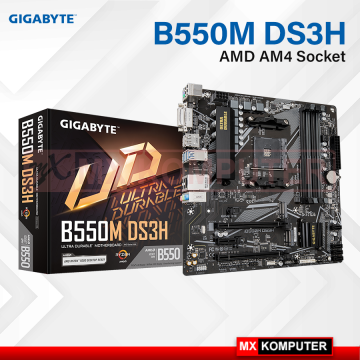

Motherboard GIGABYTE B550M DS3H (AMD AM4, B550, DDR4)
Rp 1.500.000Kode | MB GA B550 2 |
Stok | Habis |
Kategori | Mainboard |
Motherboard GIGABYTE B550M DS3H (AMD AM4, B550, DDR4)
SPECIFICATION :
CPU
AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Audio
Realtek ALC887 codec
High Definition Audio
LAN
Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Motherboard GIGABYTE B550M DS3H (AMD AM4, B550, DDR4)
Berat | 300 gram |
Kondisi | Baru |
Dilihat | 352 kali |
Diskusi | Belum ada komentar |
